Preventitive maintenance part two-idler pulley replacement and overflow bottle cleaning.

So with the tune up all finished and driving the duck around for a bit I found the noise from the idler pulley to be still there, and an inspection of the pulley led to a failed bearing.  After 226,000 miles it had definitely seen better days and was in need of replacement, before it locked up and spit the belt off the engine.

After again removing the serpentine belt, a 13 millimeter socket and ratchet remove the old idler pulley.  This being the original pulley, there was a large washer that was used as a dust cover, to keep dirt away from the bearing and therefore keeping the pulley in service longer.  On the replacement, the bearing is sealed, and the dust cover is not necessary, especially considering that the cover did not fit the pulley very well.  The replacement pulley came with an insert to keep the pulley at the proper distance from the mounting point on the engine block, and some Loctite blue keeps the factory bolt in place when reinstalling once cured, usually 24 hours for a complete curing.

A pointer on using Loctite: Loctite comes in three versions, which are color coded according to their use.  Loctite green is the lightest duty, and generally has no use that I am aware of in an automotive setting. Loctite red is the strongest duty, and is meant for use on something that you never want to come apart. Heat is required to break loose anything you decide to use the red strength for, and the red version is very unforgiving, so whatever you use this strength thread locker on plan to have it stay together forever.

Loctite blue is a good, all around keep it in place thread locker. You will need to use a proper wrench or other tool to break loose any bolts you apply this to, but it is forgiving in that you can actually take something apart without having to heat the bolt up to do so.  I use this on anything I really don't want to come apart at an inopportune moment, like the aforementioned idler pulley, the A/C compressor I removed during the tune up, and in the future, the differential cover bolts.

I have not repaired the thermostat/upper radiator hose issue yet, but I did take notice that the coolant overflow tank has a lot of what looks like lime in it.  It's actually cooling system sludge, along with rust and other junk that almost proved impossible to remove.  Why clean the overflow bottle? Because you don't want that stuff to somehow make its way back into the rest of the cooling system, where it can clog up the radiator or whatever small passages exist.

I ended up using a combination of salt, water and ice cubes to clean the sludge off.  What you need to do is remove the overflow tank (engine must be cold) and empty anything that might be in said tank in a responsible manner.  You then add salt (about three tablespoons), some cold water (your goal is to make a slurry) and ice cubes.  Shake this mixture in the tank until you have removed as much of the crud as you can, then rinse well with hot water and reinstall.  The salt is abrasive enough to remove the deposits and the ice helps it move around in the tank, keeping your salty slurry on the target area.

Not sure at this moment what project I am going to tackle next, but I am thinking it will be the parking brake cable.

Preventive Maintenance part one...underhood.

So today I decided to take advantage of the unusually warm weather and complete the tune up I have wanted to do for awhile. For this service, I gathered four Autolite spark plugs, BWD distributor cap and rotor, a spark plug wire kit, a Purolator air filter (just a paper one because oiled filters won't help this engine enough to justify the expense), and a serpentine belt. I also used disposable gloves, dielectric grease, anti-seize compound, masking tape, a sharpie, and a can of throttle body cleaner.







Gee Mr. Dale, what are these parts for?

 It's tune up day here in Daleland, also known as ridding my truck of the evil troll spirits!  Follow along as I do a complete secondary ignition tune up, serpentine belt install, air filter change, and find a couple surprises along the way.

Ok so above you can see I am starting out with the engine all buttoned up...not bad for 226,000 plus miles.
All that air box and tubing that sits over the engine needs to come out of the engine bay.


 Like the caption says, all that air box tube and the big box itself had to come out.  The tube was fairly easy to get loose but the big box over the throttle body wanted to be difficult.  The tube is held on by hose clamps, but the box is held on by a clamp that needs to be loosened by pushing the end of the clamp back.

With the air box out of the way I can start checking things...first is the throttle body, which is to the right...


Holy crap did a troll take a dump in here?
I tried soaking the butterfly but that alone did not work, so I decided to tackle the rest of the tune up first.


 Ugh! No wonder the truck throttle felt a little off.  That brown slime is dirt and grime buildup that can make the throttle feel sticky during operation.  Gunk throttle body and air intake cleaner has two sets of directions, which boil down to engine off or engine on.  In either case wear safety glasses because something strong enough to clean out this stuff, which is technically called varnish, will probably do a number on your eyes. Considering how hard it is to get to the #1 spark plug, I decided to remove the serpentine belt and move the A/C compressor out of the way first.




Part of the tune up today was changing the serpentine belt.  On my truck, this bolt that
I am pointing at is what you loosen to move the tensioner and thereby loosen the belt.

To get to the number one spark plug I have found it easier to unbolt
and set the air conditioner compressor to the side, gently, leaving the lines attached.
Note the line separator, loosen but do not remove the nut in the center because you
have to move the metal line out of the way, slightly and gently, to get the bolt out of the a/c
compressor mount.

Here's a tip.  Use masking tape and a sharpie to label the plug wires.
Use masking tape to hold the plug onto the socket if needed.

With the A/C compressor moved along with the belt removed and out of the way, I removed the plug wires one at a time and tagged them.  The next step is to remove the old plugs and check them for any sort of contamination, such as oil or ash.

Before I installed the new plugs, I checked the gap and then adjusted it to 0.040 inches.  Dodge states that the gap should be 0.035 inches, but I have run a 0.040 inch gap previously on my 1986 Chrysler Laser with the same engine setup with no issues, except for better fuel economy.  In the middle of this part of the project I checked the accessory pulleys for noise and wear.  The idler pictured below is making noise when you spin it by hand so it will need to be replaced.  Then I noticed the coolant leaking around the thermostat housing. Looks like the upper radiator hose clamp might be loose, so I tightened it a little.


A little while back I was losing coolant.  Looks like this is the culprit area, which narrows
it down to hose, thermostat gasket or thermostat housing. I tightened the hose clamp but
in the future I will pressure test the cooling system to be certain.

So I think I found an issue...actually that is an issue that needs to be addressed...soon. The best bet might be to replace the hoses as soon as possible.

Its hard to see in this photo but the center of the rotor and the contact are worn.
The distributor cap was also worn down

 Something I want to stress at this point is that the number one on the distributor cap (not pictured) is so that the number one spark plug wire is routed to the proper plug.  The rotor rotates clockwise in the distributor cap and fires the cylinders in this order: 1,3,4,2.  The cylinders are (from the front of the engine where the belt lives) in order: 1,2,3,4. This firing order is pretty much the same for almost every four cylinder engine made in the United States.

Before reinstalling the serpentine belt I started the engine and let it run for a few minutes to check to see if the noise I was hearing was valve train or accessory related. I did hear some minor noise which I attribute to either injector noise or rocker arm adjustment needing to be done.  The belt also needs to "set" into the pulleys before driving it.  Additionally, you would rather the belt go flying off the engine at your home rather than out driving your vehicle around.

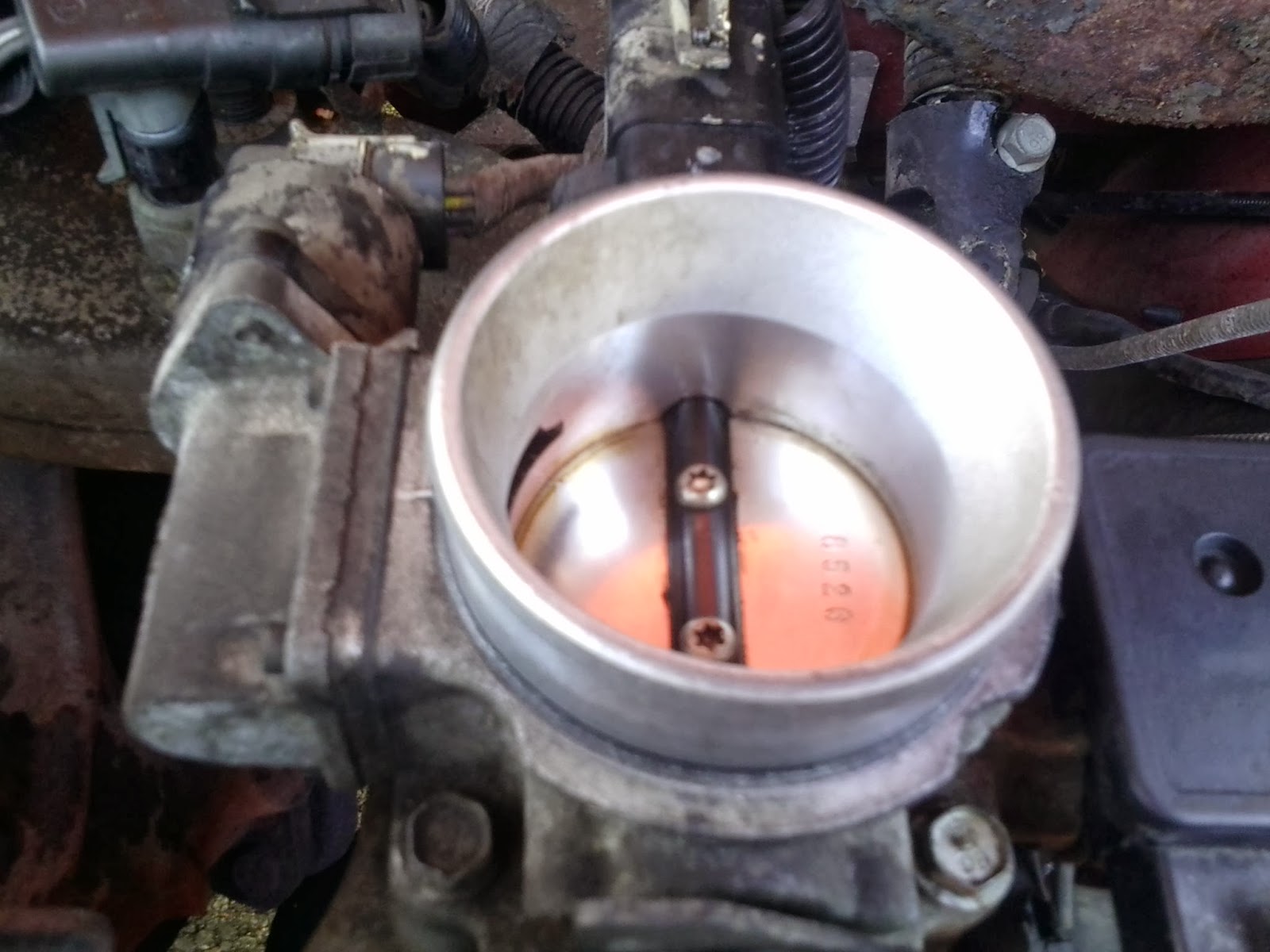

This is way better...


So, about that throttle body...I ended up first soaking a rag with throttle body cleaner and wiping off as much troll slime as I could get to.  Then I started the engine and cleaned the butterfly with short bursts while manually operating the throttle.  IMPORTANT: Never lean over the belts to do this service with the engine running.  Go from the side.  The belt and/or accessory pulley can catch your clothing and cause major injury, like taking your arm off.


The reason for cleaning your throttle body, mass air flow sensor, intake tube and anything else having to do with the intake and fuel systems is there is dirt and other junk flying around in the air most of the time.  This dirt can get into the engine without a good air filter and cause problems, like making the throttle body butterfly stick closed, hard throttle movement, bad fuel economy, and in general lackluster performance.

One of the conveniences of owning a truck is that if you need to remove parts usually you can store them in the bed.  This being said I will probably end up painting these components sometime in the future, just to keep the engine bay looking good.  Ok as good as it can considering the truck started life red and received a paint job that did not carry into anything that is usually not seen by the general public.

So, after doing all this work (took about two hours) the truck is definitely running better.  Before the tune up the truck would move but it seemed to be sluggish at times.  Now, the throttle response is better, the acceleration is improved, and just overall it feels like there is more power available.  I still have to tackle the coolant leak and I still have to see what, if anything, is going on under the valve cover.
